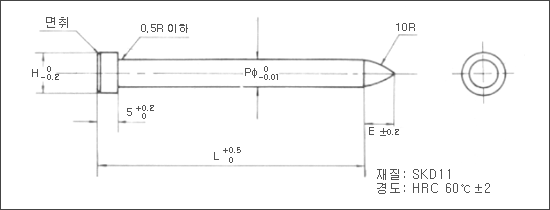

      STRAIGHT PILOT-PUNCH [TPSS]


  ● 주문방법

    (TYPE DØ) - (길이 L) … 수량
  (예) TSPP4.2 - 52 … 10本

  ● 규격표
(단위: ㎜)
  0
TYPE PØ
  -0.01
H
(HEAD徑)		 E L
52 62 72 82
TPL 2.00~2.99 4 4.3~5.2 ○ ○ ○ -
3.00~3.99 5 5.2~6.0 ○ ○ ○ ○
4.00~4.99 7 6.0~6.6 ○ ○ ○ ○
5.00~5.99 8 6.6~7.1 ○ ○ ○ ○
6.00~6.99 9 7.1~7.6 ○ ○ ○ ○
7.00~7.99 10 7.6~8.0 ○ ○ ○ ○
8.00~8.99 11 8.0 ○ ○ ○ ○
9.00~9.99 12 ○ ○ ○ ○

● PØ에 대한 E部의 길이표

PØ 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9
E 3.1 3.3 3.4 3.5 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5.0 5.1 5.1
PØ 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9
E 5.2 5.3 5.4 5.5 5.5 5.6 5.7 5.8 5.8 5.9 6.0 6.0 6.1 6.2 6.2 6.3 6.4 6.4 6.5 6.5
PØ 5.0 5.1 5.2 5.3 5.4 5.5 5.6 5.7 5.8 5.9 65.0 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 6.9
E 6.6 6.6 6.7 6.7 6.8 6.8 6.9 6.9 7.0 7.0 7.1 7.1 7.2 7.2 7.3 7.3 7.4 7.4 7.5 7.5
PØ 7.0 7.1 7.2 7.3 7.4 7.5 7.6 7.7 7.8 7.9 8.0 8.1 8.2 8.3 8.4 8.5
E 7.6 7.6 7.7 7.7 7.7 7.8 7.8 7.9 7.9 7.9 8.0 8.0 8.0 8.0 8.0 8.0

※ 규격외 치수의 경우는 DØ, H, L, B, PØ의 변경부를 명시해 주십시오.
