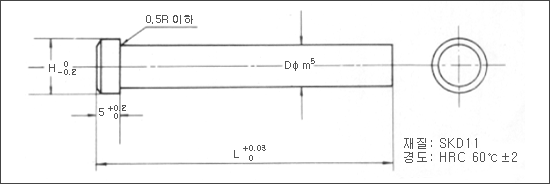

      PUNCH-BRANKING [TPBL]


  ● 주문방법

    (TYPE DØ) - (길이 L) … 수량
  (예) TPBL8 - 70 … 10本

  ● 규격표
(단위: ㎜)
TYPE DØ H L
40 50 60 70 80 90 100
TPBL
3 +0.002
+0.006
5 ◎ ◎ ◎ ◎ - - -
4 +0.004

+0.009
7 ◎ ◎ ◎ ◎ ◎ - -
5 +0.004
+0.009
8 ◎ ◎ ◎ ◎ ◎ - -
6 +0.004
+0.009
9 ◎ ◎ ◎ ◎ ◎ - -
8 +0.006
+0.012
11 ◎ ◎ ◎ ◎ ◎ - -
10 +0.006
+0.012
13 ○ ◎ ◎ ◎ ◎ ◎ ◎
13 +0.007
+0.015
16 ○ ◎ ◎ ◎ ◎ ◎ ◎
16 +0.007
+0.015
19 ○ ◎ ◎ ◎ ◎ ◎ ◎
20 +0.008
+0.017
23 ○ ◎ ◎ ◎ ◎ ◎ ◎
25 +0.008
+0.017
28 ○ ◎ ◎ ◎ ◎ ◎ ◎
